I. Full-featured protection, covering risks across all operational scenarios
This system incorporates over ten practical safety features, encompassing vehicle periphery protection, driver behavior monitoring, and operational compliance oversight, thereby providing dual human-machine safety safeguards:
1. 360° panoramic view + blind spot detection
Equipped with a 360° panoramic top-view camera system, it provides a comprehensive view of the vehicle's surrounding environment without any blind spots. Additionally, it supports multi-zone intelligent blind-spot warnings, capable of accurately identifying various individuals—including ordinary pedestrians, children, and those wearing rain gear—while issuing tiered warnings based on proximity. This solution effectively addresses the key challenges faced by specialized vehicles: extensive visual blind spots and difficulties in identifying personnel.
2. Dual reverse parking warning to prevent reverse parking collisions
Equipped with dual warning mechanisms—both external and internal—the vehicle provides dual alerts during reverse driving: an external voice warning combined with a synchronized in-vehicle alert. This effectively alerts nearby personnel, significantly reduces the probability of collisions or scrapes during reversing, and enhances operational safety when reversing.
3. Comprehensive Behavioral Control of Drivers
The system provides real-time monitoring of the driver's operational status, accurately identifying violations such as fatigued driving, smoking while driving, or making phone calls, and issuing timely warnings; it supports facial recognition authentication to precisely match the operator; when combined with seat detection functionality, it can intelligently identify whether the driver is absent from their post, thereby eliminating issues such as unattended operation and non-compliant procedures. Additionally, it features a seatbelt warning function: the vehicle cannot start if the driver has not worn a seatbelt, ensuring compliance with operational standards from the outset.
4. Intelligent fork lift recognition to standardize operational procedures
The dedicated forklift customization feature enables intelligent detection of non-compliant operating behaviors—such as over-height loading or single-fork loading—by uploading real-time data to the host system to trigger alarms, thereby eliminating safety hazards including cargo tipping and vehicle rollovers caused by improper forklift operations.
5. Automatic emergency braking: proactively mitigating risks
The system's AI cameras continuously monitor surrounding personnel and obstacles in real time, accurately assessing collision risks. In the event of an emergency, if the driver fails to take evasive action promptly, the system will automatically trigger emergency braking to swiftly mitigate risks and prevent collisions.
6. Intelligent width warning system: comprehensive area-based alert and protection
Equipped with high-brightness projection warning lights, it supports a flashing mode, offers optional red and blue light options, features a wide projection range and high brightness, enabling clear demarcation of the vehicle's operational boundaries to prompt nearby personnel to yield, making it ideal for use in dimly lit industrial areas and nighttime operations.
II. Intelligent Operating Principle: Precise and Efficient Protection
The system utilizes AI-powered cameras to continuously monitor the vehicle's surrounding environment and personnel dynamics around the clock. By integrating vehicle speed data with radar detection information, the core controller intelligently analyzes and assesses the risks of potential collisions and operational violations. Based on the risk level, it automatically triggers voice alerts and visual warning lights; in emergency situations, it directly activates the automatic braking function, thereby establishing a comprehensive intelligent protection closed-loop comprising "monitoring → assessment → warning → braking."
III. Wide Compatibility: Support for a variety of specialized vehicles
Compatible vehicle types: low-speed heavy-duty transport vehicles, industrial forklifts, overhead cranes, and other specialized operation vehicles.
Operating parameters: Compatible with operating vehicle speeds ≤ 10 km/h; operating voltage range of 8V–36V, compatible with the electrical circuits of the vast majority of special-purpose vehicles.
Environmental Adaptability: Supports an ultra-wide operating temperature range from –40 °C to +85 °C; operates stably under standard weather conditions, making it suitable for diverse and complex operational environments such as industrial plants, ports, and construction sites.
IV. Full-system configuration with integrated hardware and software support

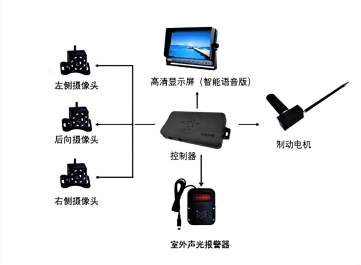

The complete system features comprehensive hardware and modular integration, requiring no additional modifications—offering a one-stop solution for complete configuration, installation, and operation. It includes an AI-powered camera, core controller, high-definition display, braking motor, outdoor alarm, and intelligent hard drive host. The hardware and software are highly compatible, ensuring stable and seamless operational synergy.
V. Core Product Advantages
1. High-definition image quality with precise recognition: Utilizing AHD high-definition display technology, the system delivers clear and detailed imagery, achieves high accuracy rates in environmental and personnel recognition, and maintains an extremely low rate of false alarms and false stops;
2. Stable performance and strong adaptability: featuring an ultra-wide operating voltage range and an ultra-wide operating temperature range, it delivers excellent performance during day and night operations; it requires no manual adjustment of braking parameters and automatically adapts to various operational scenarios.
3. Non-destructive installation and non-invasive modification: The brake system is installed without altering the original vehicle's brake assembly, ensuring that the vehicle's original warranty remains unaffected, and providing safe and reliable modification results;
4. Long-term storage with enhanced traceability: By employing H.264 video encoding technology, the video storage duration is significantly extended, facilitating daily security monitoring and post-incident analysis and traceability.
