Henan Hanghu Group - Product Introduction of 360-Degree AI Intelligent Anti-collision System for Hanghu Forklifts
I. Introduction to product functions:
360 panoramic view: 360-degree panoramic overhead image
360-degree blind spot detection: Supports blind spot warnings in multiple areas across 360 degrees, accurately identifying various pedestrians (adults, children, wearing rain gear, etc.); provides warnings of different levels at different distances;
Reverse voice alarm: When reversing, external voice warnings are combined with internal pre-warnings to enhance reversing safety and reduce the risk of rear-end collisions.
Driver behavior detection: Real-time detection of driver status, providing early warnings for behaviors such as driver fatigue detection, smoking, and making phone calls.
Face recognition: Face recognition is linked to driver identity authentication and recognition.
Automatic braking: When the system detects a potential risk of collision with a person, if the driver fails to respond in time, emergency braking will be automatically activated to reduce the probability of an accident.
Driver seat detection: Detect whether the driver is seated in the chair, and utilize facial recognition to achieve driver absence detection.
Seat belt detection and warning: It detects whether the driver is wearing a seat belt. The vehicle cannot be started if the driver is not wearing a seat belt.
Forklift cargo height recognition: The forklift cargo height recognition device can detect excessively high cargo or single-fork cargo and transmit the information to the host for alarming.
Width warning light: It projects a range warning light around the vehicle, supports strobe, projects bright light, and offers red and blue light options.
II. Working Principle:
The intelligent AI camera of this system monitors the distance of pedestrians around the vehicle in real-time, combines speed and radar information, analyzes potential risks through the controller, and automatically issues warnings or activates emergency braking when necessary to prevent collisions.
III. Scope of application:
Applicable speed: ≤10km/h;
Operating ambient temperature: -40℃ to +85℃;
Operating voltage: 8V~36V;
Applicable vehicle types: including low-speed heavy-duty transport vehicles, forklifts, reach stackers, and other specialized vehicles;
It can operate under normal weather conditions, but its performance may be limited in severe weather conditions.

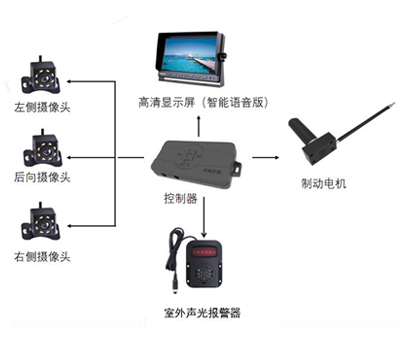

IV. System composition:
The main hardware includes:
[1] Smart AI camera
[2] Controller
[3] High-definition display screen
[4] Brake motor
[5] Outdoor alarm
[6] Smart hard disk host
V. Core Advantages:
AHD high-definition display technology clearly reflects the on-site environment; automatic braking response is sensitive, with low rates of false alarms and false braking.
Wide operating voltage range, compatible with multiple vehicle models; excellent performance at night, no need to manually adjust brake force.
The installation of the brake mechanism does not affect the original vehicle brake assembly and warranty terms; video storage adopts H.264 technology, effectively extending storage time.
